"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

[xo18thfa]

Many years ago I built a Gauge 1 version of Ernest Glaser's "Cracker".  Cracker, originally Gauge 0, is a single cylinder, gear driven, single acting oscillating engine with a gas fired boiler.  Here are a few examples of Cracker.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The plans for Cracker are available at:

http://home.iae.nl/users/summer/16mmngm/Articles_htms/Cracker.htm

My version of Cracker, named "Chip", is a scale up, convert to inch and round off of Mr. Glaser's plan.  The bore is 7/16" with a stroke of 5/8".  Gear reduction is 3.25 to 1.  Chip has no lubricator, throttle, water gauge or safety valve (the oscillating motor is the safety).  The burner is Mr. Glaser's original, converted from metric to inch.  A separate car carries the fuel tank.  Here is Chip as finished:

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

I like the Cracker design a lot and have since built several variants.  They are surprisingly powerful and long running little engines.  This version, named "Regal", follows the general Glaser plan, but is fired by  alcohol with the fuel tank between the frames.

Start the construction with the gear train.  The Regal gears are 48 Diametral Pitch.  The pinion on the crank shaft is 18 tooth, with gears of 52 teeth.  This train provides a gear ratio of 3.25 to 1.  I made my own gears for Regal, however, stock gears are available.

http://madmodder.net/index.php/topic,11964.0.html

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

It's best to test the gears for fit prior to making the frames.  Ensure the gears turn without any bind, but are not too loose.  Carefully measure the distance between pinion and gears and use this dimension for the frames.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The frames are 16 gauge (approx. 0.059") hot rolled plate.  Sheet brass will work as well.  Do not use aluminum or stainless steel.  Here is the drawing:

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Saw two pieces about 1/8" oversize and clamp together with 0 x 80 machine screws.  Place the screws in the lower corners of the frames where they later waste out.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Clamp the frame slabs to the table of the mill.  Place a 3/4" thick MDF spacer under the frames to prevent drilling or milling into the table.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Mill the ends to 6" overall length.  Mill one long edge cleanly.  This long end is the top of the frame for the next operations.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Set up dial indicators on the X and Y axis of the mill table.  Or use the DRO if have one.

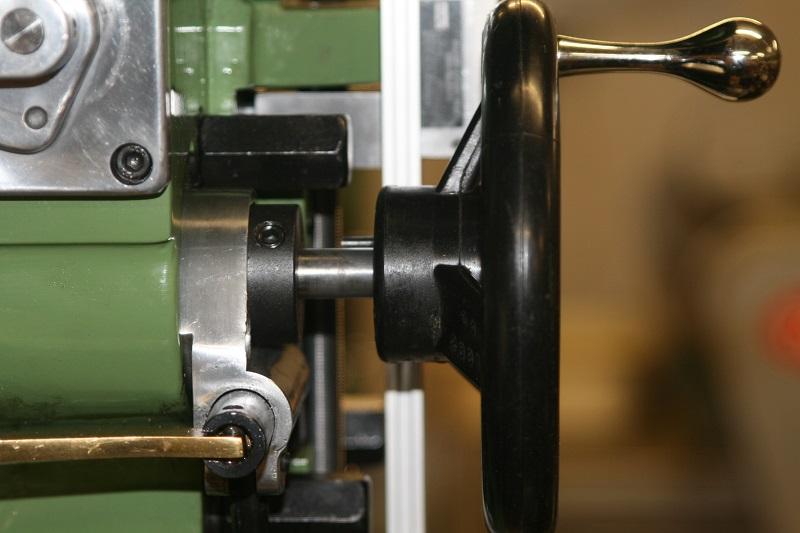

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Locate and drill a total of eight #51 holes for 0 x 80 machine screw clearance.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Reposition the milling table clamps, without disturbing the frames to drill and ream holes for axle and crank bearings.  These locations are based on the gear train test result.  Drill two #42 holes for the engine standard.  Holes for the axles and crank bearing must be accurately located.  The dial indicators on the mill table makes easy work of the frames.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Remove the frames from the mill and finish the bottom edge.  Finish the bottom edge either on the mill or by hand.  Even though Regal is a single cylinder engine, both frames are drilled for the engine.  This way the engine can be placed on either side.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Next time, we'll work on the end beams, assemble the frame, make and install the bearings.

[krv3000]

hi just fantastic

[fcheslop]

Nice looking little loco. Do you intend posting all youre drawings as I could fancy building one myself to go with my 16mm cracker
Did you build a Cracker T ?.
cheers
frazeer

[xo18thfa]

Thank you very much.  Yesterday Regal ran on air for the first time.  All went well.

Yes, I'll post all the drawings here.  These little engines are very powerful.  "Chip" the engine shown above was built in 2014.  This video was taken at our big steam up in Sacramento California.

https://youtu.be/olNsRBN_M1I

[fcheslop]

Thanks Bob, look forward to the build. You have to like the wee Cracker as they are so much fun as a quick build or a first build.
What dia is the boiler just so I can start scrounging for some copper tube
Cheers
frazer

[xo18thfa]

Hi frazer.  Since Regal is alcohol fired I decided to go with a vertical boiler with a horizontal water leg to make it look like a "T" boiler.  I think there is a lot of flexibility in the boiler design.  I have some 2" dia thin wall (.032") copper tube for the vertical leg and 1-1/2 for the horizontal leg.  But I think those can vary.  The center flue up the vertical leg is 3/4" common plumbing pipe with some 1/4" cross water tube.  Before going final on the center flue, I will make one up and test how the flame passes thru.

Our club track has a 32mm loop that's in dis-repair.  I should fix it up and do a "Cracker" according the plan.

Thanks, Bob

[xo18thfa]

Make the end beams from the same material as the frames.  Here is the drawing for the end beam and other parts used in this section.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Use the same general method to make the end beams.  Regal uses a brass screw in eye hooks as couplers.  Drill the end beam exactly in the center for a tight fit screw hook and soft solder in place.  Shape the end beam as desired, but maintain overall dimension and spacing of holes.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Next are the bearings.  There are 8 bearings total.  Seven are for axles, gear counter shaft and the flywheel end of the crank.  One extra length bearing is on the cylinder end of the crank.  Make the bearing from 3/8" diameter round brass.  Use a squared end parting tool work for all the machining steps.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Use the parting tool to turn the shoulder portion of the bearing.  Turn the shoulder slightly under 5/16" so they fit easily in the frames.  Center drill and drill with #21.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

#21 drill is 0.159" diameter.  The axles are from 5/32" ground and polished stock.  The fit is very slightly loose, but not sloppy.  Next part the bearing off the stock.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The frames and end beam assemble with brass angle gussets in the corners.  Make four gussets as shown in the drawing.  Brass angle is ideal, however, aluminum angle available from Lowe's or Home Depot works fine.  Here are the frame parts ready to assemble.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The hot rolled steel plate used for the frames and end beams has a blackened scale coating from the rolling process.  Prior to assembly, remove the scale by soaking the parts in swimming pool acid.  Assemble the frame using 0 x 80 machine screws and model hex nuts.  Cut some lengths of 5/32" diameter ground and polished steel, either cold rolled or stainless.  Slip the bearings into position using the axles for alignment.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The frames are drilled to allow the engine to be on either side.  Ensure the longer crank bearing is on the side of choice.  Flux and soft solder the bearings in place using the axle stock for alignment.

Clean up the frame assembly and test fit the gears.  Everything turns smoothly.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Next time is wheel turning.

[fcheslop]

Thanks Bob, so she is a wee bit like a Cracker T. The standard cracker is a good  little engine although if I was to build her again I would extend the rear of the frames and mount the gas tank underneath. I used Tony Birds poker type burner and it worked well straight from the drawings. I did add an extra boiler bush for a safety valve just my way I guess
Thanks for the info
cheers
frazer


[xo18thfa]

Hi Frazer.  I moved the crank shaft 1/4" forward to make more room for the fuel tank as well.

[xo18thfa]

The wheels on Regal follow the Gauge One Model Railroad Association (G1MRA) recommended practice.  G1MRA's practice is available from their website.   The G1MRA practice calls for a 3 degree taper on the wheel rim and 20 degree taper on he outer edge of the flange.  Wheels can be either steel, brass, stainless, cast iron or aluminum.  Aluminum works very well for wheels.  It is easy to machine and has a great deal of friction on the rails.  Here is the wheel drawing:

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Start with a 1/2" long slab of 1-3/8" diameter round stock.  Chuck in the three jaw chuck.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Drill and ream to 5/32" diameter for the axles.  Face turn the outer hub to 3/8" diameter and 0.069" deep.  The .069 hub depth allows for a 0.010" side to side clearance of the wheel sets in the frames.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Next turn a shoulder that serves as the wheel rim.  Leave the rim turned straight for now.  The 3 degree taper will come later.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Turn a decorative recess about 1/16" deep.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Reverse the wheel blank in the chuck and turn the backside.  Turn the flange to a thickness of .060".

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Repeat the process 3 more times.  Here are the wheel blanks ready for final turning.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Make a turning spud from a length of the axle materiel and scrap 3/4" round stock.  "Loctite" the axle material into the spud body.  Tap the end for 4 x 40 machine screw.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Mount a wheel blank on the spud.  Use a dial indicator to ensure the blank is perfectly centered in the 4 jaw chuck.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Set the compound rest on the lathe to 3 degrees.  Take very light cuts until the entire rim is tapered to 3 degrees.  Be careful not to reduce the root diameter of the wheel.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Turn all the wheel rims with the 3 degree setting.  The set the compound to 20 degrees to taper the flanges.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

After tapering the flange, use a hand file to round over the flange and break the sharp corner on the edge of the rim.  Finish the remaining 3 wheels in the same manner.

Clamp the wheels in the milling machine vice at about 30 degrees.  Sandwich the wheel in wood to protect the flanges.  Drill and tap for a 6 x 32 set screw.  Drill into the corner between the hub and wheel back.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Wheels all finished.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Next time is the crank shaft, flywheel and finish up the rolling chassis.

[xo18thfa]

The flywheel is a two step turning job.  Here is the drawing:

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Any metal, except aluminum will do for the flywheel.  Aluminum is probably too light.  The flywheel has to be a bit robust or the engine will run very "jerky" on the track.  This flywheel is bronze.  Chuck a 9/16" length of 1-3/4" or 2" diameter stock and turn the outside.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Grip the flywheel by the inner recess to face the back and turn the rim.  Break the sharp corners on the rim with a hand file.  Polish the rim to VERY high luster.  Everyone will see it.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Clamp the flywheel in the mill vice and tap for a 6 x 32 set screw.  Same operation as on the wheels.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The crankshaft is a 3 piece fabrication.  Here is the drawing.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The first piece is the main shaft.  Cut a 3-7/32" length of 5/32" diameter ground and polished stock.  Drill and tap the end of the shaft with 4 x 40.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Also cut a 5/16" length of 1/8" diameter ground and polished stock and tap with 0 x 80.  This is for the wrist pin.  "Loctite" machine screws into the ends of the shafts.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Be sure to use high quality "ground and polished" stock for the crankshaft and axles.  G&P is exact diameter, perfectly round and exceptionally smooth.  Regular rolled stock will work, but G&P is superior.  Use either free machining 12L14 steel or 303 stainless.

Next, face off a 3/16" length of 1" diameter stock for the crank web.  This web is bronze for a nice contrast.  Center drill and tap with 4 x 40.  Secure the web blank on a piece of scrap material in the mill vice.  Tap with 0 x 80 exactly 5/16" from the center of the main shaft.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Trim the 4 x 40 and 0 x 80 machine screws to a length of 5/32".

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

"Loctite" the crank web to the main shaft.  Chuck the main shaft and crank web in the lathe.  Turn to final diameter and width.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

"Loctite" the wrist pin into the crank web and the crankshaft is done.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Use Loctite #242 (the red stuff) for these applications.  #242 is a high strength threadlocker for close, smooth finish surfaces.  Autozone usually carries #242.

Time to assemble the rolling chassis.  Trim the length of the axles about 1/32" proud of the bearings on both sides.  The back-to-back measurement on the wheels is exactly 1.574".  While putting the chassis together, bolt on eight angle brackets for the footplate.  The angle brackets are 1/4" x .025" brass hobby angle drilled for 0 x 80 machine screws.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Put a drop of light machine oil on each bearing.  It will roll like a champ.

Next time is the start of the motor unit.

[xo18thfa]

The motor for Regal is a single cylinder, single acting oscillator.  The bore is 7/16" with stroke of 5/8".  Oscillators are easy to build and very powerful.  "Chip" is the first oscillating locomotive I built, its been running strong for years.  Here is Chip at the National Summer Steamup, I think in 2013.

https://www.youtube.com/watch?v=olNsRBN_M1I

The first part is the engine standard.  It consists of the portface and manifold.  Here is the drawing.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The first step is clamp some 1" x 1/8" brass to the milling table.  Profile the sides and cut a shallow recess to receive the manifold.  If you don't have a 1/4" ball end mill bit, hand cut the recess with a round file.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The manifold is 1/4" diameter round brass.  Drill and tap both ends with 3/16 x 40 as deep as possible, but don't break thru.  Soft solder the manifold to the portface.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Flip the standard over and drill all the holes.  The two #43 holes at the top of the standard just break into the manifold.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Cut the standard off the stock.  The standard is not quite finish yet.  The finish up comes after the cylinder build.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The cylinder is a 1-5/16 long piece of 7/8" diameter bronze.  It is usual practice to make mating surfaces from dissimilar metals.  So the standard is brass with a bronze cylinder.  There are several grades of bronze.  Alloy #932 is the most common form.  It is a general purpose bearing bronze that is vert durable easy to machine.  Here is the drawing for the cylinder and top cover.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Chuck round cylinder sideways in the lathe and machine one side flat.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Machine the other side and port face in a similar manner.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Clamp the cylinder in the mill vice to drill the port hole and tap for the pivot pin.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Make a very small center drill on the bottom of the cylinder for the bore center.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Since the cylinder is an odd shape, it will not chuck properly in a 3-jaw universal chuck.  Use a "wiggler" center finder to center the cylinder in the 4-jaw independent.  This is the wiggler I made many years ago.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Use the wiggler to adjust each chuck jaw to center the cylinder.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

This is enough for now, so we will end here and finish the cylinder next time.

[xo18thfa]

With the cylinder block centered in the 4 jaw begin drilling out the bore.  Step drill with about 3 or 4 drill bits to 3/8".  Then switch to a boring bar.  Take several light cuts until the bore is about .010" under 7/16".

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

To size the bore exactly to 7/16" use a reamer in the tailstock chuck.  Feed the ream slowly with the lathe set at its lowest speed possible.  They say you don't have to, but I heavily oil the reamer.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Turn the bottom end of the cylinder to remove excess metal.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Even though the ream leaves a very good bore surface, it's still not good enough.  The bore need "lapping" to remove the microscopic burrs left by the ream.  Turn a piece of wood, either maple or oak, to 7/16" diameter.  Obtain some fine, #280 grit, grinding paste.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Chuck the wooden lapping rod in the lathe chuck.  Apply some grinding compound to the wood lap.  Slip the cylinder on and start the lathe.  Work the cylinder back and forth on the lap for about 15 to 20 seconds.  That's all it needs.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The process requires a lapping rod that is softer then the cylinder, in this case wood.  The grinding paste embeds itself in the softer lapping rod in order to hone the cylinder surface.  If a harder lap was used, the grinding paste would embed in the cylinder wall and cut the lap.  The cylinder bore must be as true as possible before lapping.  Lapping will not correct a bad bore.  When finished, the bore will have a very smooth frosty surface.

Now lap the portface on the engine standard and cylinder.  Do this by taping a quarter sheet of  #320 wet/dry sand paper tightly a flat surface.  Oil the sand paper and gentle grind the port faces with a circular motion.  Repeat the process with #400 grit and again with either #1500 or #2000 grit sandpaper.  If you don't have the finer paper, #400 is good enough.  It will just take a bit longer for the engine to "run in".

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

When complete the portfaces are dead flat with a smooth frosty surface.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Finally time for the piston.  Here is the drawing:

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Fabricate the piston with 3 parts, the big end, piston rod and piston.  The big end is the hardest part to make.  It is 1/4" square stock.  To get the big end stock centered in the 3 jaw chuck, make a split collet that fits over the square stock.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Cross drill the big end with #30 to fit the wrist pin.  Chuck the stock with collet in the 3 jaw.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Drill and tap with 2 x 56, turn the end a bit then part the big end off the stock.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The piston itself is alloy #303 ground and polished stainless steel.  The G&P stainless fits perfectly in the reamed and lapped cylinder bore.  Drill, tap and turn according to the drawing being careful not to mar the surface.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Oil the cylinder and try a test fit of the piston.  It should slide close but free.  The piston should slide freely when blowing in the portface hole by mouth.  If it's too tight, give the cylinder a few more seconds on the lap.  When all is ready, soft solder the top cover on the cylinder and make the pivot pin.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Assemble the motor onto the frame.  The cylinder spring is 1/4" long, 1/4" diameter, 0.020" music wire.  The exact spring is McMaster Carr part number 9657K259.   An equivalent works fine.  Oil everything in preparation for the air test.  Put a drop of light machine oil between the cylinder and engine standard.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Hook up a regulated air source to the manifold and block up the engine.  This engine runs fast on 6 or 7 PSI.  Run the engine for about 30 minutes on air.  Stop every 5 minutes or so to disassemble the motor and clean it.  Do a "dyno test" with a finger against a wheel.  It will take some effort to bog the engine down.

https://www.youtube.com/watch?v=2yZPM22uW80

Next time is the footplate and fuel tank.

[xo18thfa]

The footplate serves as the basis for mounting the boiler, cab and burner assembly.  It also provides additional rigidity to the rolling chassis.  By this point a few errors have probably crept into the Regal  chassis, making it difficult to fabricate the footplate in one operation.  Do the footplate in stages, using "fit one part to the next" method.

The footplate is from 1/32" sheet steel or brass.  It is possible to mill the footplate as done with the frames.  The thin material is just as easy cut with a fret saw and hand filed out.  Break all sharp corners with a small chamfer or round over.  Here is the footplate drawing to start:

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Remove the wheels, axles, gears and motor parts from the chassis.  All that will need paint eventually anyway.  Turn the frame upside down on the footplate and directly transfer the mount holes.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Next part is the fuel tank.  Regal has a single pot, gravity fed, alcohol burner.  The goal is to hide the fuel tank as much as possible under the frame.  It would be easier to make an over sized tank and install under the rear end of the footplate, but that's what I am trying to avoid.  So the Regal tank is rather flat and as long and wide as possible.  The flatter profile should also prevent starvation to the burner pot as the fuel level drops.

Previous tests determined that Regal should burner about 0.8 milliliters of alcohol per minute.  For a 5 minute warm up and 20 run, that comes out to a 16 milliliter capacity requirement.  Doing the conversion, that is about 1 cubic inch.  At first I thought that would be possible with a single tank.  But math and theory usually never work out, so I went with 2 tanks.  A large tank in back and a small one in front connected with a run-a-round tube.

The tank is silver soldered from 1/32" thick sheet brass.  The rear tank has an overall dimension of  2-1/8" wide, 1-1/8" long and 11/16" height.  Cut a strip of brass 5/8" wide and bend into the rectangular shape and silver solder.  Cut the top and bottom sheets rather oversized.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The burner pot itself is a 1/4" nominal (3/8" OD) copper elbow.  Trim the elbow so it is a smidgen above the top of the tank.  The center of the burner pot is about 1-3/8" in front of the tank.  When installed this will put the burner pot about half way between the rear axle and the center gear axle.  Silver solder a length of 1/4" brass tubing for a fill tube.  Silver solder two #2 x 56 machine screws for mounting the tank to the footplate.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

On the bottom of the tank, silver solder a length of 1/4" tube for an overflow.  Cut the top of the tube at about a 30 degree angle and push it in until it hits the top of the tank.  This will overflow excess fuel out of the tank at about 1/8" from the top.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

At this point I changed my mind and added the additional tank in the front.  This tank is from 5/8" thin wall square brass tube with the ends silver soldered on.  As an alternative, make the forward tank with the same method as the rear tank.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

Connect the front and rear tanks a run-a-round tube from 1/4" or 5/16" brass tube.

"Regal" 0-4-0 Oscillator in Gauge 1, Progress and Updates

The fuel tank is a real "cut to fit" job, so no drawings per se.  It is actually easy to silver solder the tank.  Once silver solder cools, it re-melts at a higher temperature, so there is no worry about the job falling apart on subsequent solderings.

Finally, stuff the burner pot with wick material.  Wicks are kind of an art, not too tight, not too loose.  Insert the wick well into the rear fuel tank.  Ordinary cotton candle wick is an excellent material.  Just don't ever let the tank run dry.  An alternative is fiber glass.  Shape and trim the wick to get a 1-1/2" to 2" flame.

Test burns show this tank will work.  It's good I added the front tank, now it has a good 25 minute burn time.  With a flame of 1-1/2 inch height, the fuel consumption is down to about 0.60 milliliters per minute.  And it burns hot.

Next time is the boiler.
