Elmer's horizontal mill engine.
« on: December 21, 2014, 02:55:12 PM »
For my first try at building a steam engine I have opted for Elmer’s no33 horizontal mill engine.  To make it easier to do I have doubled the scale and adapted it to metric.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/MillAssem1.jpgElmer's horizontal mill engine.
http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/MillAssem3.jpgElmer's horizontal mill engine.

Shaft part of the crankshaft.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00001.jpgElmer's horizontal mill engine.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00002.jpgElmer's horizontal mill engine.

The crank pin

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00003.jpgElmer's horizontal mill engine.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00004.jpgElmer's horizontal mill engine.

Setting up a piece of material for the crank web.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00005.jpgElmer's horizontal mill engine.

Drilled and turned the boss end.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00006.jpgElmer's horizontal mill engine.

Then turned around, and turned the outside and faced off.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00007.jpgElmer's horizontal mill engine.

The milling work has to wait until my mill is fixed.

Next were the eccentric, first faced and drilled and then offset to turn the journal.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00008.jpgElmer's horizontal mill engine.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00009.jpgElmer's horizontal mill engine.

More to follow.

Cheers
Abraham

Logged

Offline vtsteam

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 6905
  • Republic of Vermont
Re: Elmer's horizontal mill engine.
« Reply #1 on: December 21, 2014, 03:04:26 PM »
Great, Abraham, looking forward to this!  :coffee: :coffee:
Logged
I love it when a Plan B comes together!
Steve
"www.youtube.com/watch?v=4sDubB0-REg"

Offline krv3000

  • Hero Member
  • *****
  • Posts: 2188
Re: Elmer's horizontal mill engine.
« Reply #2 on: December 21, 2014, 04:44:50 PM »
brill keep it up
Logged

Offline mexican jon

  • Full Member
  • ***
  • Posts: 214
Re: Elmer's horizontal mill engine.
« Reply #3 on: December 21, 2014, 10:08:32 PM »
Looking forward to following this 1  :thumbup:
Logged
People say you only live once ! I say thank F@*K can't afford to do it twice.

Offline modeldozer

  • Sr. Member
  • ****
  • Posts: 299
  • Valencia, Spain
    • AJ´s Truckmodeling
Re: Elmer's horizontal mill engine.
« Reply #4 on: December 22, 2014, 06:00:01 PM »
Thanks to all for following.

The piece of stainless steel that I wanted to use for the valve pushrod had a slight bend in it so I had to do a makeshift drive arrangement to turn it between centers.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00010.jpgElmer's horizontal mill engine.

Once true it was chucked in a collet chuck for a bit more rigidity while turning.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00011.jpgElmer's horizontal mill engine.

Ready for milling.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00012.jpgElmer's horizontal mill engine.

Next was the connecting rod, here turning the radii with a form tool.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00013.jpgElmer's horizontal mill engine.

Turning done.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00014.jpgElmer's horizontal mill engine.

That’s all for now.

Cheers
Abraham
Logged

Offline vtsteam

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 6905
  • Republic of Vermont
Re: Elmer's horizontal mill engine.
« Reply #5 on: December 22, 2014, 06:03:11 PM »
Looking good!  :coffee:
Logged
I love it when a Plan B comes together!
Steve
"www.youtube.com/watch?v=4sDubB0-REg"

Offline SwarfnStuff

  • Hero Member
  • *****
  • Posts: 596
Re: Elmer's horizontal mill engine.
« Reply #6 on: December 23, 2014, 01:16:45 AM »
Well this is another project I will keep tabs on and keep my mind off my non working lathe. (Blown diode in the controller, waiting for replacement parts and hopefully it will be a simple repair.  :zap: ) Great work so far.
Logged
Converting good metal into swarf sometimes ending up with something useful. ;-)

Offline modeldozer

  • Sr. Member
  • ****
  • Posts: 299
  • Valencia, Spain
    • AJ´s Truckmodeling
Re: Elmer's horizontal mill engine.
« Reply #7 on: December 23, 2014, 08:39:57 AM »
Thanks guys,  Might slow down a bit as i am still waiting for my mill's bed from the machine shop.

Cheers
Abraham
Logged

Offline modeldozer

  • Sr. Member
  • ****
  • Posts: 299
  • Valencia, Spain
    • AJ´s Truckmodeling
Re: Elmer's horizontal mill engine.
« Reply #8 on: December 24, 2014, 08:39:15 AM »
Next up were the 4 spacers for the crosshead.  Turned the outsides, drilled and cut off 4x.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00015.jpgElmer's horizontal mill engine.

Then set up a backstop.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00016.jpgElmer's horizontal mill engine.

And clean them up to the same length.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00017.jpgElmer's horizontal mill engine.

Then it was time for a cleanup as next I will be turning brass.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00018.jpgElmer's horizontal mill engine.

Turned the two main bearings.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00019.jpgElmer's horizontal mill engine.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00020.jpgElmer's horizontal mill engine.

More to follow.

Cheers
Abraham
Logged

Offline modeldozer

  • Sr. Member
  • ****
  • Posts: 299
  • Valencia, Spain
    • AJ´s Truckmodeling
Re: Elmer's horizontal mill engine.
« Reply #9 on: December 26, 2014, 05:00:40 PM »
Hi all,

The packing nuts were machined from hex stock.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00021.jpgElmer's horizontal mill engine.

The cutoff ends were faced and the holes reamed to final size.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00022.jpgElmer's horizontal mill engine.

Finished.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00023.jpgElmer's horizontal mill engine.

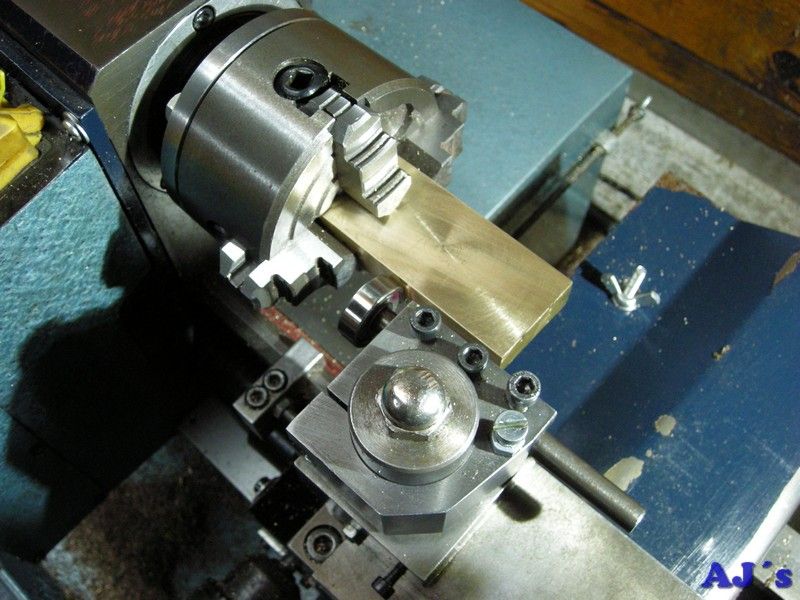

A piece of flat bar was centered to a punch mark.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00024.jpgElmer's horizontal mill engine.

A hole was drilled.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00025.jpgElmer's horizontal mill engine.

And bored.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00026.jpgElmer's horizontal mill engine.

The piece was then reset.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00028.jpgElmer's horizontal mill engine.

And faced, then flipped over and faced on the other side.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00027.jpgElmer's horizontal mill engine.

Ready for some milling work to turn it into the eccentric strap.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00029.jpgElmer's horizontal mill engine.

Until next time.

Cheers
Abraham
Logged

Offline Stilldrillin

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 4972
  • Staveley, Derbyshire. England.
Re: Elmer's horizontal mill engine.
« Reply #10 on: December 27, 2014, 04:28:40 AM »
Well done, and nicely shown, Abraham!  :clap: :clap:

It's nice to see you're back with us, again.....  :thumbup:

David D
Logged
David.

Still drilling holes... Sometimes, in the right place!

Still modifying bits of metal... Occasionally, making an improvement!

Offline modeldozer

  • Sr. Member
  • ****
  • Posts: 299
  • Valencia, Spain
    • AJ´s Truckmodeling
Re: Elmer's horizontal mill engine.
« Reply #11 on: December 27, 2014, 09:43:49 AM »
Hi David,

Thank you for the encouragement.  Am glad to be able to carry on with the hobby for a while longer.

Abraham
Logged

Offline vtsteam

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 6905
  • Republic of Vermont
Re: Elmer's horizontal mill engine.
« Reply #12 on: December 27, 2014, 12:55:55 PM »
 :coffee:  :clap:
Logged
I love it when a Plan B comes together!
Steve
"www.youtube.com/watch?v=4sDubB0-REg"

Offline CrazyModder

  • Jr. Member
  • **
  • Posts: 86
Re: Elmer's horizontal mill engine.
« Reply #13 on: December 27, 2014, 04:27:36 PM »
Well done. Might I ask which lathe that is?
Logged

Offline Meldonmech

  • Hero Member
  • *****
  • Posts: 933
Re: Elmer's horizontal mill engine.
« Reply #14 on: December 28, 2014, 03:34:58 AM »

  Abraham
                      A very well presented project, looking forward to more.

                                                                     Well done
                                                                                          Cheers David
Logged

Offline modeldozer

  • Sr. Member
  • ****
  • Posts: 299
  • Valencia, Spain
    • AJ´s Truckmodeling
Re: Elmer's horizontal mill engine.
« Reply #15 on: December 28, 2014, 05:26:19 AM »
Hi to all,

Thanks for looking and encouraging.

Crazymodder,

It is a highly moddified Realbull 7x14 sold here under the Einhell brand.

Cheers
Abraham
Logged

Offline modeldozer

  • Sr. Member
  • ****
  • Posts: 299
  • Valencia, Spain
    • AJ´s Truckmodeling
Re: Elmer's horizontal mill engine.
« Reply #16 on: December 29, 2014, 06:58:13 PM »
Hello to all,

   Hope everybody had a nice Christmas and Santa was very generous.

Next up was the valve chest and, as the mill is still out of commission, a piece of brass was fly cut to size.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00030.jpgElmer's horizontal mill engine.

It was then centered lengthwise,

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00031.jpgElmer's horizontal mill engine.

and the boss for the packing seal turned.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00032.jpgElmer's horizontal mill engine.

It was drilled and taped.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00033.jpgElmer's horizontal mill engine.

For the deep hole I had to make a long drill by soldering a drill bit into a length of bar.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00036.jpgElmer's horizontal mill engine.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00037.jpgElmer's horizontal mill engine.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00040.jpgElmer's horizontal mill engine.

Test fitting the packing nut and valve pushrod.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00041.jpgElmer's horizontal mill engine.

The part was then turned around and the boss on the blind side turned,

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00042.jpgElmer's horizontal mill engine.

and parted off.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00043.jpgElmer's horizontal mill engine.

The round over was done by file.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00044.jpgElmer's horizontal mill engine.

The piston pushrod was cut to length and threaded.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00035.jpgElmer's horizontal mill engine.

Tuning the pin for the valve pushrod.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00038.jpgElmer's horizontal mill engine.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00039.jpgElmer's horizontal mill engine.

Cheers
Abraham
Logged

Offline modeldozer

  • Sr. Member
  • ****
  • Posts: 299
  • Valencia, Spain
    • AJ´s Truckmodeling
Re: Elmer's horizontal mill engine.
« Reply #17 on: December 30, 2014, 06:58:46 PM »
Hi all,

Next a slice of cast iron was marked and cut.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00045.jpgElmer's horizontal mill engine.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00046.jpgElmer's horizontal mill engine.

A layout was stuck to the slice and some further cuts made. The off cuts will be used later.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00047.jpgElmer's horizontal mill engine.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00048.jpgElmer's horizontal mill engine.

The main piece was centered in the 4-jaw chuck,

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00049.jpgElmer's horizontal mill engine.

the outside turned to size and the gland boss turned.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00050.jpgElmer's horizontal mill engine.

Ready for drilling.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00051.jpgElmer's horizontal mill engine.

The left over piece had to be turned over and machined from the other end to make the blind head.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00052.jpgElmer's horizontal mill engine.

Being cut off.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00053.jpgElmer's horizontal mill engine.

To hold the blind head for facing the outside an ER40 chuck was used.  A slug of 25mm bar was placed in the back of the collet so it could close.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00056.jpgElmer's horizontal mill engine.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00054.jpgElmer's horizontal mill engine.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00055.jpgElmer's horizontal mill engine.

The finished pair.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00058.jpgElmer's horizontal mill engine.

http://i519.photobucket.com/albums/u356/dozerd10/Workshop/Projects/Elmer33/Image00059.jpgElmer's horizontal mill engine.

That’s all for now.

Cheers
Abraham
Logged

Offline krv3000

  • Hero Member
  • *****
  • Posts: 2188
Re: Elmer's horizontal mill engine.
« Reply #18 on: December 30, 2014, 07:13:14 PM »
thats rely shaping up nice  :thumbup:
Logged

Offline Stilldrillin

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 4972
  • Staveley, Derbyshire. England.
Re: Elmer's horizontal mill engine.
« Reply #19 on: December 31, 2014, 04:04:19 AM »
Coming along nicely!  :thumbup:

The saw marks on the c/i, took me back to aching young muscles, in the apprentice school..... 1960.  :(

It's going to be larger than I first thought......  :scratch:

Nice work Abraham!  :clap: :clap:

David D



Logged
David.

Still drilling holes... Sometimes, in the right place!

Still modifying bits of metal... Occasionally, making an improvement!

Offline modeldozer

  • Sr. Member
  • ****
  • Posts: 299
  • Valencia, Spain
    • AJ´s Truckmodeling
Re: Elmer's horizontal mill engine.
« Reply #20 on: December 31, 2014, 08:26:29 AM »
Hi KRV and David
      Thank you for the encouragement.

Unfortunately the only means for cutting things in my shed is elbow work and a hack saw.

Cheers
Abraham
Logged

Offline modeldozer

  • Sr. Member
  • ****
  • Posts: 299
  • Valencia, Spain
    • AJ´s Truckmodeling
Re: Elmer's horizontal mill engine.
« Reply #21 on: December 31, 2014, 08:55:51 AM »
Hi all,

A question for the collective, with a CI cylinder what material would be the best fo the piston, CI, brass or mild steel?

Abraham
Logged

Offline vtsteam

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 6905
  • Republic of Vermont
Re: Elmer's horizontal mill engine.
« Reply #22 on: December 31, 2014, 09:12:18 AM »
I'd vote for CI.

Graphite containing, same rate of expansion as cylinder, less tendency to rust (with steam oil coating) than steel (for steam), no tendency to electrolytic action with cylinder. (as brass would, if damp).
Logged
I love it when a Plan B comes together!
Steve
"www.youtube.com/watch?v=4sDubB0-REg"

Offline DavidA

  • Hero Member
  • *****
  • Posts: 1219
Re: Elmer's horizontal mill engine.
« Reply #23 on: December 31, 2014, 11:06:03 AM »
Abraham,

An interesting collection of tool holders you have hanging on the wall.

Dave.
Logged

Offline modeldozer

  • Sr. Member
  • ****
  • Posts: 299
  • Valencia, Spain
    • AJ´s Truckmodeling
Re: Elmer's horizontal mill engine.
« Reply #24 on: December 31, 2014, 02:19:01 PM »
vtsteam,
            Thank's for the quick response, will make it from the same as the cylinder.

Dave,
        all based on Ralph Patterson's designs.

Logged
Pages: [1] 2 3 ... 5   Go Up
« previous next »
