Author Topic: DTI holder for lathe toolpost  (Read 11829 times)

Offline micktoon

  • Hero Member
  • *****
  • Posts: 797
  • Country: gb
DTI holder for lathe toolpost
« on: February 25, 2015, 07:48:09 PM »
Hi Lads
             Just made a small gadget that will make life easier, its a dedicated holder for a DTI that fits on the lathe toolpost. Nothing fancy but seems to work fine.
  Its just a bit of square bar that fits into the quick change holder, I drilled and tapped it M6 at three points along the side and also on the end.
  To space out the DTI so it clears the holder I had some stand off type bolts, its the sort of thing that is used to mount a circuit board or panel so its stood up off the base, all they are is a tall nut with a stud sticking out one end. I had 4 of these they just happened to be perfect size to space out the DTI and the last one acted as a nut to nip the lug on the DTI, to make it easier to get a hold of when tightening I screwed a M6 plastic knob into the nut.

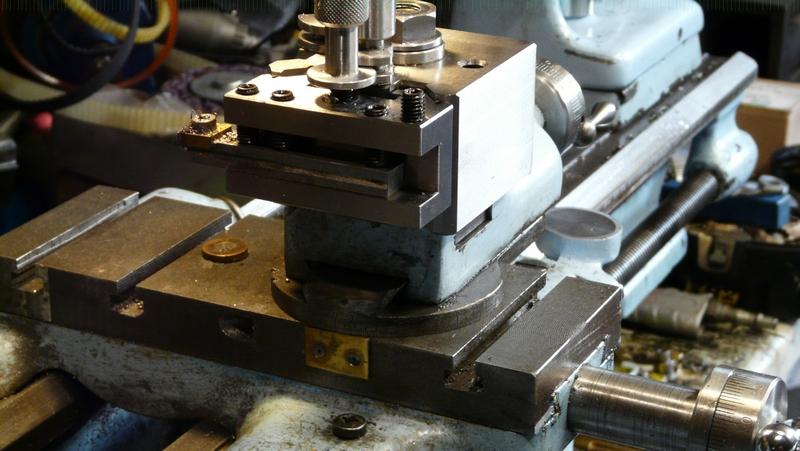

  I think all should be explained by the photos.

 Mounted in this position its good for bar or the edge of a small disc type item , if you have a larger disc you run out of travel with the cross slide but you can then mount the DTI in the rear nut, in practice you will probably have to remove the front nut so it will give clearance for the DTI.



 If its mounted on the end position its able to indicate the face of a disc.





 I actually drilled three holes just as it was set up but I don't think there is any need for the middle one.





 Its very quick to use , nice and solid with no faffing about with mag stands and all you need to make one is a bit of bar and 4 of the stand off nuts, then drill and tap 4 holes. If you wanted a smarter looking one or just wanted to make it into a bigger job , you could turn the spacer nuts and knurl the end etc.

  Cheers Mick.

Offline The Steamer

  • Jr. Member
  • **
  • Posts: 43
Re: DTI holder for lathe toolpost
« Reply #1 on: February 25, 2015, 08:47:38 PM »
Very neat mick, you could  also have a Finger clock  in the same holder on the other end for dialing in on an internal bore ect.

Offline vtsteam

  • Global Moderator
  • Hero Member
  • *****
  • Posts: 6676
  • Country: us
  • Republic of Vermont
Re: DTI holder for lathe toolpost
« Reply #2 on: February 25, 2015, 08:48:58 PM »
I have sworn so many times to bin the magnetic holder I have, just to force myself to make some mounts for the  lathe. This will be my next project after my lathe is back together, Mick, Thanks! :beer:
I love it when a Plan B comes together!
Steve
https://www.youtube.com/watch?v=4sDubB0-REg

Offline mechman48

  • Sr. Member
  • ****
  • Posts: 327
  • Country: gb
Re: DTI holder for lathe toolpost
« Reply #3 on: February 26, 2015, 05:47:49 AM »

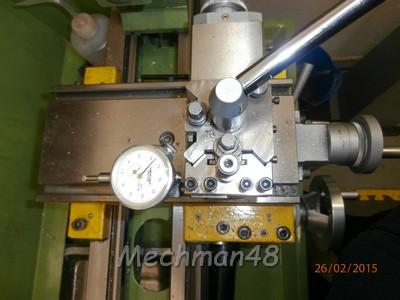

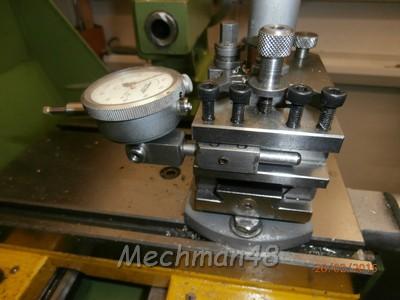

Very nice design; had made something similar some time back but of a different design to yours, you've got me thinking of improving on mine now, whereas I turn the dti round in the holder & place the holder on the front fitting for face reading your method seems a better set up.. thanks for the idea.


George.


Always look on the bright side of life, & remember.. KISS..' Keep It Simple Stupid'

Offline doubleboost

  • Madmodder Committee
  • Hero Member
  • *****
  • Posts: 1619
  • Country: gb
  • Newcastle Upon Tyne
Re: DTI holder for lathe toolpost
« Reply #4 on: February 26, 2015, 05:04:20 PM »
Very nice Mick :drool: :drool: :drool:
Great to see the 3 jaw in place  :doh: :doh: :doh: :doh:

John

Offline krv3000

  • Hero Member
  • *****
  • Posts: 2188
  • Country: gb
Re: DTI holder for lathe toolpost
« Reply #5 on: February 26, 2015, 05:57:08 PM »
brill job i bit off topic got you sum 20mm thick by 180mm by 130mm plate for your vice

Offline micktoon

  • Hero Member
  • *****
  • Posts: 797
  • Country: gb
Re: DTI holder for lathe toolpost
« Reply #6 on: February 26, 2015, 06:12:29 PM »
 Hi Lads, thanks for the comments , its so easy to make its got to be done eh !
  Steamer , good idea to have a finger attachment on the end for inside a bore....thats the beauty of forums half an idea starts off and its a proper job by the time a few others add to it, I don't have a decent finger dial but once I get one I will be adding that too cheers  :thumbup:

  Aye John , its sure a nice sight that 3 jaw on the lathe lol, thanks again for assistance mate  :clap:

  Well done Bob, thanks ,  that sounds like it will do the job lovely  :dremel: :thumbup: :bow:

 Cheers Mick

Offline dawesy

  • Sr. Member
  • ****
  • Posts: 252
  • Country: gb
Re: DTI holder for lathe toolpost
« Reply #7 on: February 27, 2015, 03:10:43 AM »
On my list when I get a QCTP. Excellent idea and nicely made too
Lee.
wishing my workshop was larger :(

Offline Meldonmech

  • Hero Member
  • *****
  • Posts: 933
Re: DTI holder for lathe toolpost
« Reply #8 on: February 27, 2015, 09:09:15 AM »

   Hi Mick, neat little Job.  I have all the necessary construction parts, in my come in handy box. Should make a nice casual weekend in the workshop for a change, may even only take a relaxing Sunday morning.

                                                                       Cheers David

Offline chipenter

  • Hero Member
  • *****
  • Posts: 909
  • Country: gb
Re: DTI holder for lathe toolpost
« Reply #9 on: February 27, 2015, 11:32:27 AM »

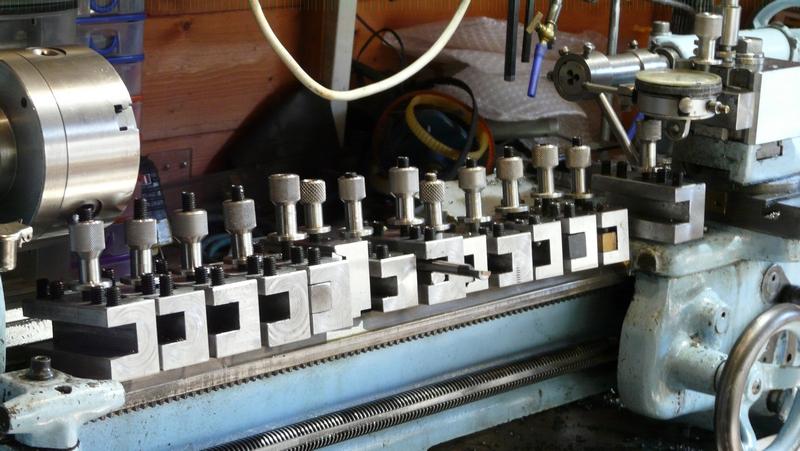

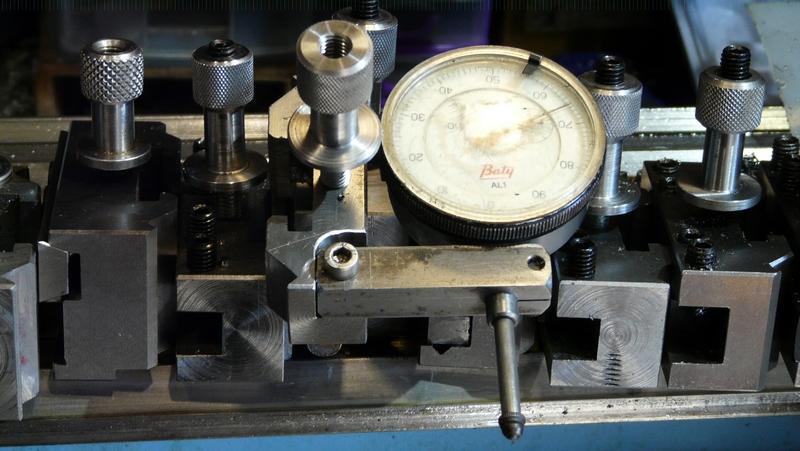

I made some holders and a smaller one for the dial guage , slacked the screw and it flips 90 degrees .
Jeff

Offline Ginger Nut

  • Full Member
  • ***
  • Posts: 232
Re: DTI holder for lathe toolpost
« Reply #10 on: March 03, 2015, 01:10:54 AM »
Very slick Mick if you do not object stolen idea

Offline chipenter

  • Hero Member
  • *****
  • Posts: 909
  • Country: gb
Re: DTI holder for lathe toolpost
« Reply #11 on: March 03, 2015, 02:16:56 AM »
Woops wrong pic .
Jeff

Offline micktoon

  • Hero Member
  • *****
  • Posts: 797
  • Country: gb
Re: DTI holder for lathe toolpost
« Reply #12 on: March 03, 2015, 03:38:20 AM »
Hi Gingernut, no, steal away :thumbup: ..............hope you can make something useful or even improve the idea, if we all share ideas we find userul on the forum we all benefit  :dremel:, spread the joy as BobKRV3000 says

  Cheers Mick
